 Planet Technology CAM-KB300 |
|
|
 |
 |
| Hardware > Seguridad >
Videovigilancia-CCTV > Control-de-camaras-CCTV > Planet-Technology >
CAM-KB300
|
|
| 3-Axis Control Keyboard |
|
|
|
 |
|
 |
|
| Garantía del fabricante: 2 años SAT (Servicio Técnico) |
|
 Hoja de Datos |
|
Disponibilidad:  |
|
| |
|
| Características |
|
Via RS-485 interface, the PLANET CAM-KB300 is a 3-Axis control Control keyboard Keyboard which provides upward, downward, leftward, rightward, clockwise and counterclockwise with the joystick. It can remotely control the external scanners, speed dome cameras and PTZ receivers, and offers long distance control distance up to 4000 feet.

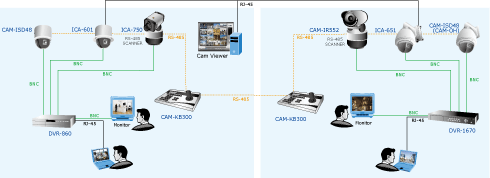

The PLANET CAM-KB300 supports CCTV system control. It is able to connect 32 keyboards and each one can control up to 255 speed dome cameras. With user-friendly LCD display, control keys and PELCO protocol compliant, the CAM-KB300 will be the best choice for the PTZ control solution.
 |
|
| Especificaciones |
|
GENERAL
Joystick 3-Axis
Control Interface RS-485
Pelco Protocol
Pelco P
Pelco D
Control Devices 255
Data Speed 9600 bps
Manual P/T Control
Pan: Right / Left
Tilt: Up / Down
Auto P/T Control
Pan: On / Off
Sequence: On / Off
Lens Control
ZOOM: Wide / Tele
FOCUS: Near / Far
IRIS: Open / Close
Camera Control
Preset Point: 80
Camera Setup Available
ENVIRONMENT
Power Requirement 12V DC, 0.5A
Dimension (W x D x H) 296 x 190 x 53 mm
Weight 1.4 kg
Operating Temperature -10 ~ 40 Degree C
Emission CE, FCC |
|
|
| |
|
|
|
