| G.SHDSL Bridge / Router (1 RJ-45, 1 RJ-11) |
|
|
|
 |
|
 |
|
| Garantía del fabricante: 2 años SAT (Servicio Técnico) |
|
 Hoja de Datos |
|
Disponibilidad:  |
|
| |
|
| Características |
|
PLANET's G.SHDSL bridge/router, the GRT-101, provides an SHDSL (Symmetric High-speed Digital Subscriber Line) network interface ranging from 192Kbps to 2.304Mbps payload rates. It is designed both to optimize the service bit rate from the Central Office to Customer Premises Equipments, and to integrate high-end bridging and routing capabilities. The GRT-101 allows customers to leverage the latest broadband technologies to meet their growing data communication needs beyond the limitations of ADSL and cable modem technologies.

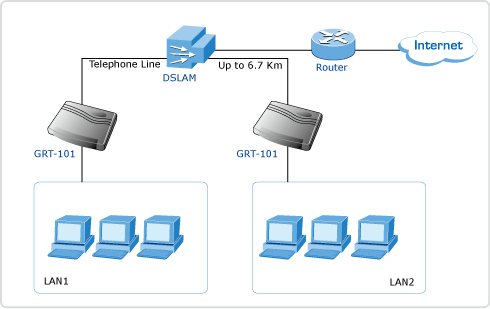

At 2.304Mbps, the GRT-101's bandwidth is greater than T1's 1.5Mbps. By using standard phone wire as a connection medium, its installation and equipment cost is typically less than T1 or Frame Relay. The GRT-101 also integrates bridging and routing support for LAN-to-LAN connection. Two GRT-101's can be connected together at a distance of up to 6.7km (4.2 miles) using phone wire, eliminating the need for leased line modems and expensive V.35 Cisco routers. Now two offices can be connected for inter-LAN communication using just one telephone pair and two GRT-101's.
Ethernet Distance extension
The GRT-101 is excellent for Ethernet distance extensionover existing telephone wires. With just one pair of AWG-26 copper wire, you can easily connect two Ethernet networks far away (maximum 6.7 kilometers/4.2 miles) with a maximum 2.3Mbps (at maximum 3.3km/2.1 miles) full duplex transfer rate.
ISP Solution
G.SHDSL is the best solution to quickly provide costeffective, high speed network service to Enterprise and SME users or SOHO users which need high-speed symmetrical Internet connections. By utilizing existing telephony infrastructure, the network installation is simple and straightforward. With up to 2.3Mbps full duplex speed IP telephony, website hosting and various broadband services can be easily provisioned.
 |
|
| Especificaciones |
|
PRODUCT
Console port RS-232
Routing
IP Routing
Static Routing and RIPv1/RIPv2
IP masquerading NAT
DHCP server
DNS relay and caching
Bridging IEEE 802.1D transparent learning bridge
Configuration Local console (RS-232) , Telnet,Web (HTTP), Password control
Network management SNMPv1 / SNMPv2 agent MIB II
ATM
Up to 8 PVCs
UBR/CBR traffic shaping
AAL5
OAM F5 loopback
ATM Forum UNI 4.0
AAL5 Encapsulation
VC multiplexing and SNAP/LLC
Ethernet over ATM (RFC 2684/1483)
PPP over ATM (RFC 2364)
Classical IP over ATM (RFC 1577)
PPP
PPP over Ethernet (RFC 2516)
PPP over ATM (RFC 2364)
User authentication with PAP/CHAP/MS-CHAP
EMC/EMI EMC/EMI FCC, CE
WAN
Interface RJ-11
SHDSL ITU-T G.991.2 (Annex A, Annex B)
Encoding Scheme 16-TCPAM
Data Rate N x 64Kbps (N=3~36)
Impedance 135ohms
LAN
Interface RJ-45
Ethernet 10Base-T
Data Rate 10Mbps
LED INDICATOR
General PWR
WAN LNK, ACT
LAN LNK/ACT, 100M
PHYSICAL/ELECTRICAL
Dimensions (W x D x H) 187 x 148 x 33 mm
Power 9V DC
Power consumption 6 watts / 20.5 BTU
Operating Temp. 0~45 Degree C
Storage Temp. -20~70 Degree C
Operating Humidity 0~95% (non-condensing)
Storage Humidity 0~95% (non-condensing) |
|
|
| |
|
|
|
