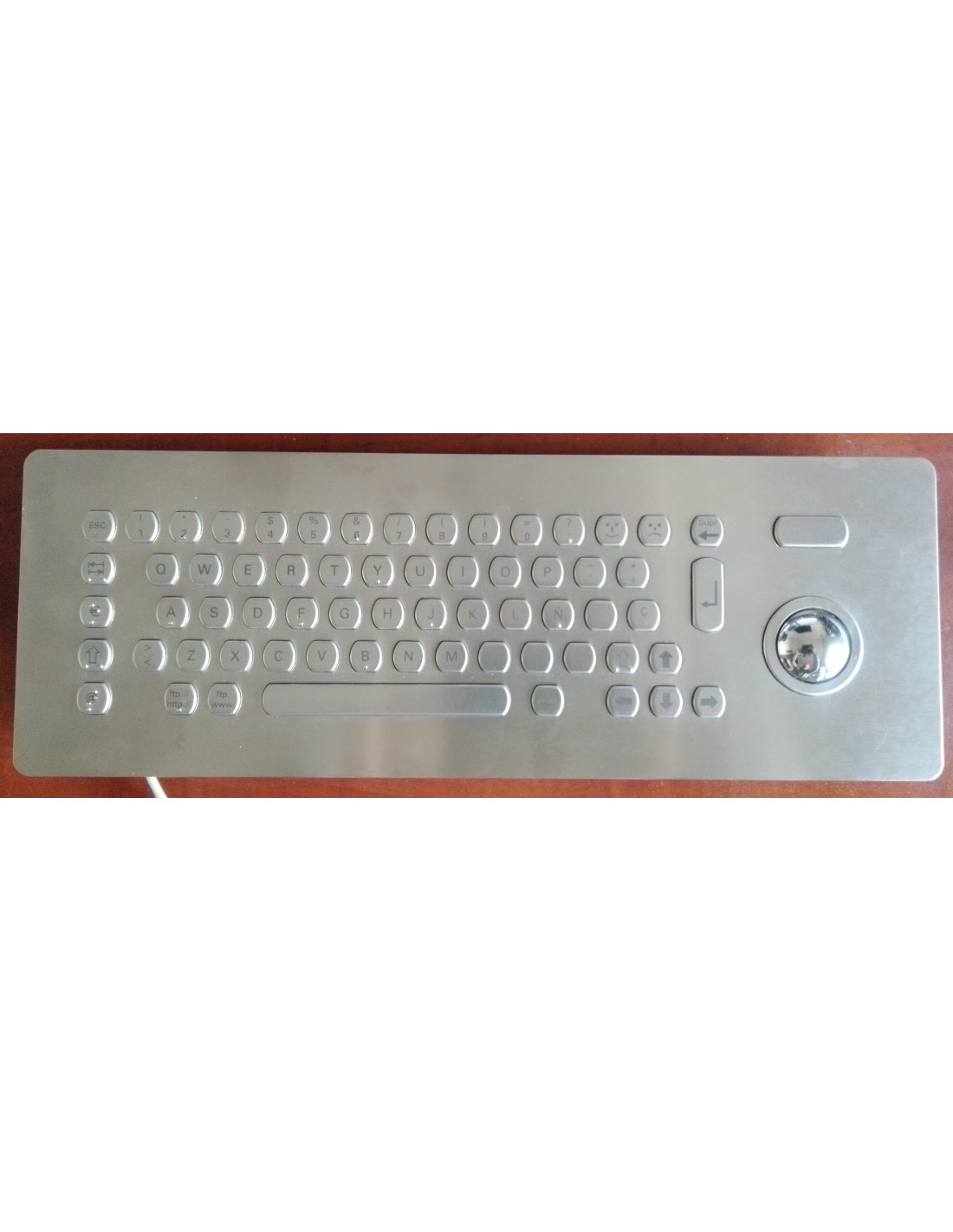

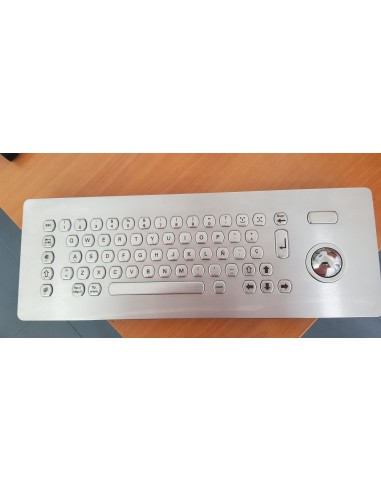

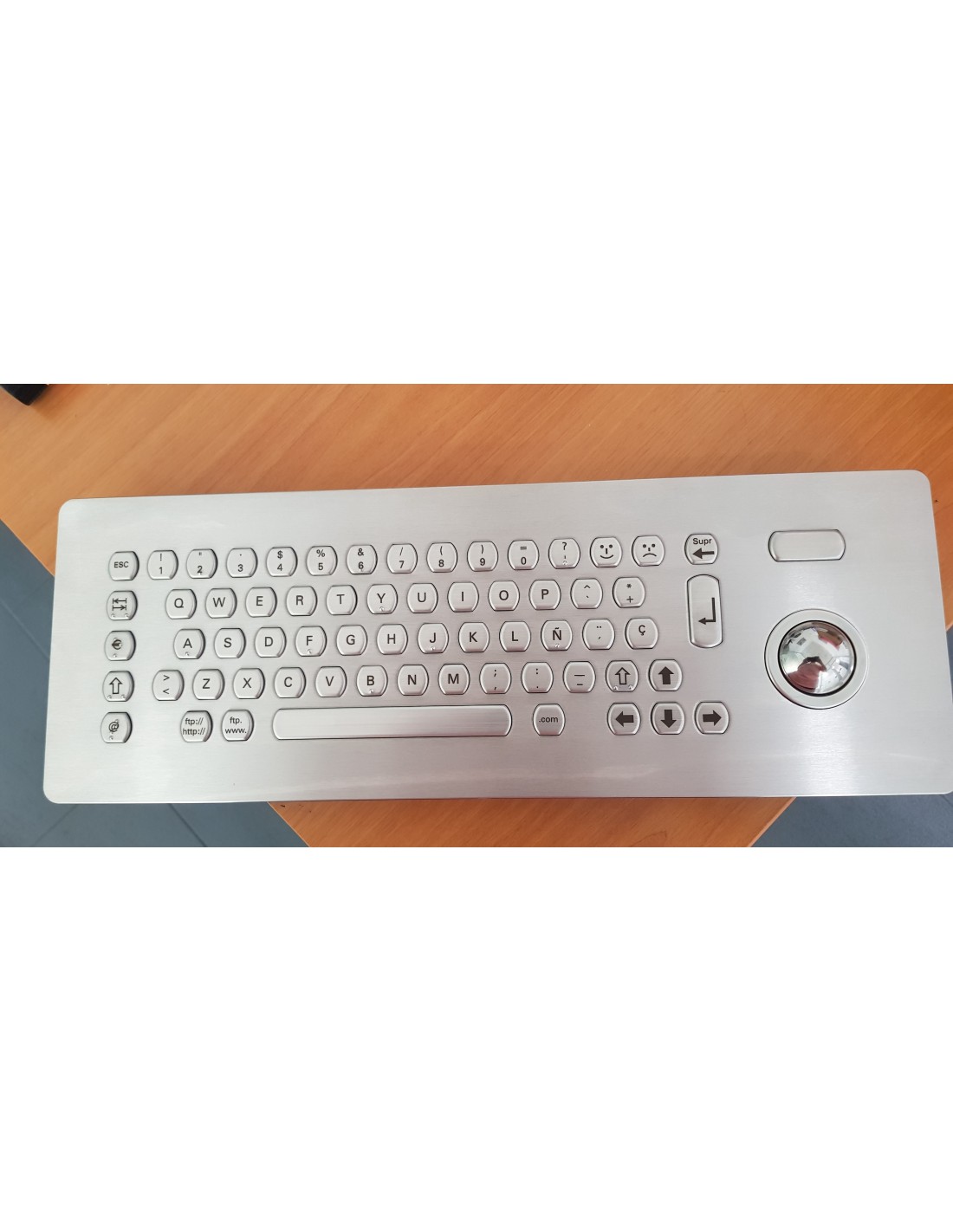

Sasse ERG3FBRAILLE/3/ES/PS2

The Ergon concept enables quality data input also at professional industrial applications. The Ergon keyboards ensure pleasant tactile feedback of the raised stainless steel keytops and reliable data input. The keyboards are available as front or back panel mounting in enclosures or as a desktop version. Various solutions in automation applications and point of sales and information can be realized.

Additional flexibility is given by models with integrated NUM-block, trackball and integrated touchpad or a combination of both. All models are protected to IP65.

Decisive advantages
• Ease of use by raised keys, ergonomic travel and low actuation force
• Positive touch feeling via tactile feedback
• Appealing design
• Protected to IP65 (front side)
• Shock- and vibration-proof
• Design keytops protected against removal and turning, can not be
pulled out
• Robust and vandal proof via baffle plate
• Durable laser lettering
• Touchpad: patended electrical capacitance system, left/right mouse
key emulation: lap once to click, twice to double click, tap and hold to drag, draw and highlight
• Trackball: ball diameter 38 mm plastic ball or stainless steel ball
• Cable pluggable
• Interface: PS/2 USB (USB only ERG4/4F74T, one additional hub port acc. USB 1.1)
• Other versions on request

Applications
• Self service machines
• Control systems
• Information terminals
• Communication terminals

lnterface PS2-Interface
Other interface on request
Switch technology Short travel keys
Operation travel/force 0,34 mm/3,3 N

Operating temperature
Keyboard -10 °C - +55 °C
Touchpad 0 °C - +60 °C
Trackball -10 °C - +55 °C

Operation lifetime Taste > 3 x 106 cycles/key
Lettering Laser
Installation Front panel

According to
89/336/EWG
89/336/EEC

Standards
EN 50 081-1
EN 50 082-2
EN 55 022-B

Protection class
Desktop: IP65
Panel mount: IP65 from the frontpanel
Trackball: static IP65, dynamic IP54
